| Nguồn gốc: | Chiết Giang, Trung Quốc |
|---|---|
| Hàng hiệu: | Factory, OEM / ODM |
| Chứng nhận: | CE, ROHS, REACH, IP68 |
| Số mô hình: | Dòng SSCG |
| Số lượng đặt hàng tối thiểu: | 200 cái |
| Giá bán: | factory direct sales |
| chi tiết đóng gói: | đóng gói tiêu chuẩn (đóng gói đặc biệt cũng có sẵn theo yêu cầu) |
| Thời gian giao hàng: | thông thường 9-14 ngày |
| Điều khoản thanh toán: | T/T, L/C, Liên minh phương Tây |
| Khả năng cung cấp: | 500.000 chiếc mỗi tháng |
| Vật liệu: | Thép không gỉ SS304, SS316, SS316L | chèn nhựa: | Polyamide 6 được UL phê duyệt (Polyamide 6.6) |
|---|---|---|---|
| bộ phận niêm phong: | NBR chịu dầu (EPDM, FKM/FPM, Cao su silicon) | Tính dễ cháy: | UL94 V-2 |
| Chủ đề: | Theo tiêu chuẩn EN 60423 | Chống thấm nước: | Xếp hạng IP68 |
| Thông số kỹ thuật: | M12x1.5~M50x1.5 | Chức năng: | Bảo vệ cáp khỏi bị uốn cong quá mức để tránh bị đứt |
Description & Application:

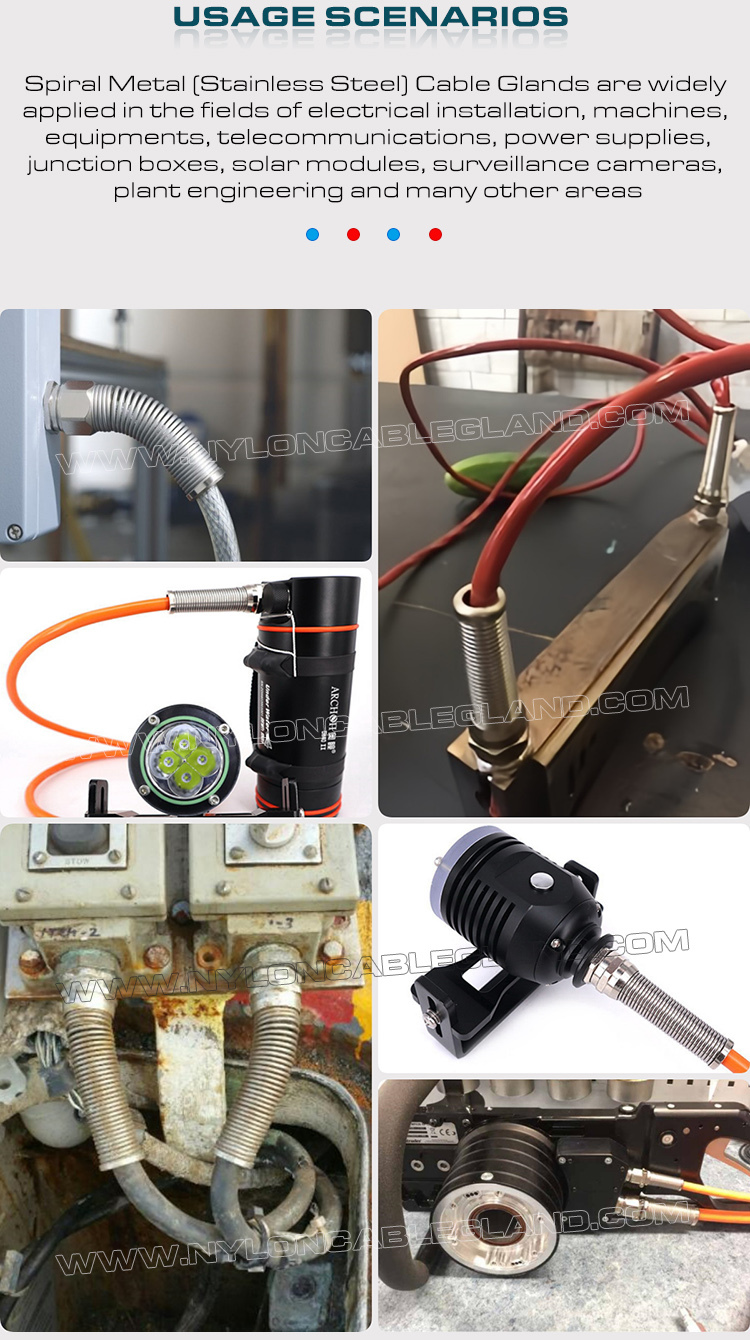

► Industrial Automation Equipment: In robots, automated production lines, CNC machine tools, and other equipment, cables need to move and bend frequently with the equipment. Anti-bend connectors effectively protect cable connection points.
► Outdoor and Humid Environments: Suitable for streetlights, lighthouses, yachts, and equipment exposed to rain or soil. Stainless steel offers excellent waterproof, dustproof, and corrosion-resistant (salt-resistant, acid and alkali-resistant) properties.
► Handheld Power Tools and Welding Equipment: Using anti-bend connectors at power cord leads in welding machines and other applications requiring frequent plugging, unplugging, and dragging can significantly extend cable life and prevent fatigue breakage.
► Medical Devices and Marine Industry: High-grade materials such as 316 stainless steel have strong waterproof and rust-proof capabilities and are commonly used for connections in medical devices and equipment used in marine environments.
► New Energy Industry: Cable connectors with high protective and bending resistance are also required in some servo motor control cabinets and new energy equipment.
| Brand name: | Factory or OEM |
| Place of origin: | China |
| Specs: | M12x1.5 ~ M50x1.5 |

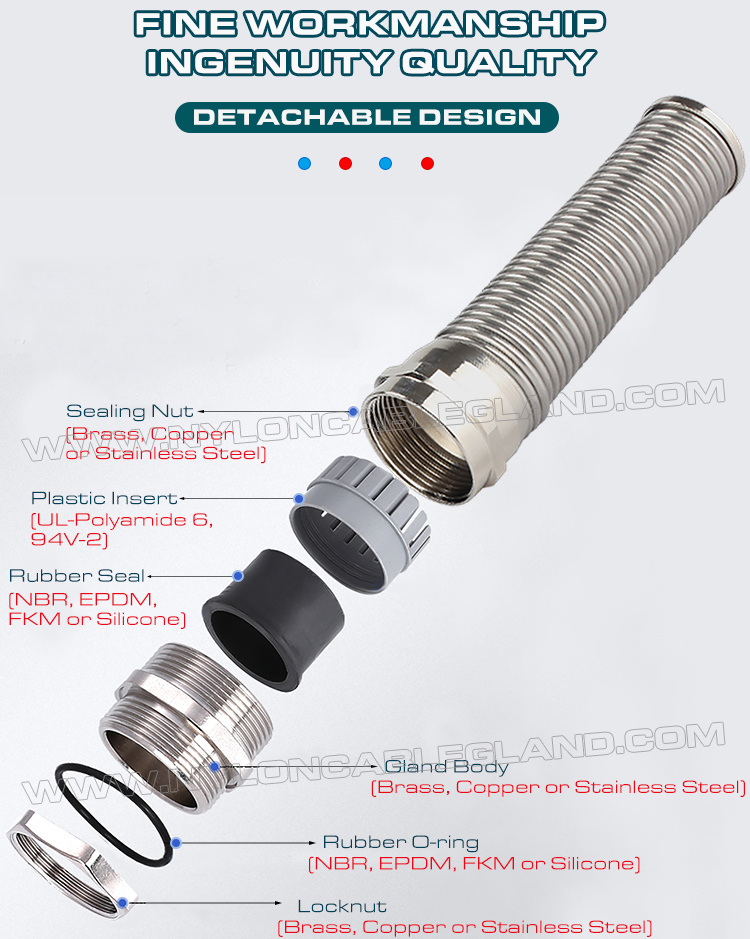

| Material: | Metallic parts are made from stainless steel 304, 316, 316L |
| Plastic insert is made from UL-polyamide 6, 94V-2 | |
| Sealing parts are made in NBR, EPDM, Silicone or FKM / FPM | |
| Surface: | Polishing threatment |
| Color: | Silver gray |
| Certification: | CE, ROHS, REACH, IP68 |
| Waterproofness: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | Standard length (other lengths can be customized) |
| Thread type: | According to the standard EN 60423 |
| Working temperature: |
Static: -40 ℃ to +100 ℃, short-term: +120 ℃. Dynamic: -20 ℃ to +80 ℃, short-term: +100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 500,000 pieces per month |
| Minimum quantity: | 200 pieces |
| Sample available: | Free samples are available upon request |
| Delivery time: | Normally 8-10 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packaging: |
(1) 100 pieces per bag or 50 pieces per bag (2) special packaging can be customized as requested |
